Full-Extension Telescope Side-Mounted Drawer Slides - Free Closing

SKU: D301010N
filler

Finish | Length: Zinc / 10"
Price: Price Available by Request

Description

The preferred slide for double file drawers! The perfect slide for many other projects!

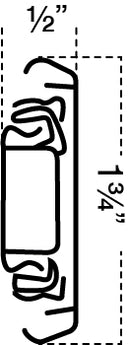

Only 1/2" thin and 1 3/4" high. This slide carries heavy loads, silently and smoothly. Made of Zinc Plated Rust-Resistant Steel, superior action is guaranteed by double ball-bearing raceways.

Rated at 100 lbs per pair on 18" size.

This slide incorporates positive "anti-bounce back" when closed. Expansion breather tabs ensure perfect fit and adjust for minor variations in drawer widths.

Easy drawer insertion and removal, with accessible hole centers on multiples of 32mm.

Available in 2" increments from 10" to 24" lengths.
Make drawer 1 1/16" narrower than opening.

Other lengths available on special order.

D3010BKT rear mounting bracket sold separately.

One of our best-sellers!

Part # Length Travel Stocked Finish
D3010SC10N 10" 11" Zinc
D3010SC12N 12" 13" Zinc
D3010SC14N 14" 15" Zinc
D3010SC16N 16" 17" Zinc
D3010SC18N 18" 19" Zinc
D3010SC20N 20" 21" Zinc
D3010SC22N 22" 23" Zinc
D3010SC24N 24" 25" Zinc
